History has failed us, but no matter.

by notdeghost

We are given a website with a simple interface that allows us to create a circuit and check it. The circuit is defined by a list of objects with input1, input2, and output keys. The circuit is then serialized and sent to the server to be executed.

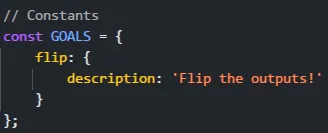

Viewing the source code of the website, we see that the GOALS constants variables which contaions goals to get the flag.

alt text

Okay so we need to create a circuit that will flip the bits of the output. We can do this by using the nand gate. The nand gate is a universal gate, which means that any boolean function can be implemented using only nand gates.

// Add the check endpoint
app.post('/check', async (req, res) => {
    const circuit = req.body.circuit;

    if (!Array.isArray(circuit) ||
        !circuit.every(entry => checkInt(entry?.input1) &&
                                checkInt(entry?.input2) &&
                                checkInt(entry?.output))) {
        return res.status(400).end();
    }

    const program = await fs.readFile('./programs/nand_checker.bin');

    // Generate random input state with only 0x0000 or 0xffff values
    const inputState = new Uint16Array(4);
    for (let i = 0; i < 4; i++) {
        inputState[i] = Math.random() < 0.5 ? 0x0000 : 0xffff;
    }

    // Create output state as inverse of input
    const outputState = new Uint16Array(4);
    for (let i = 0; i < 4; i++) {
        outputState[i] = inputState[i] === 0xffff ? 0x0000 : 0xffff;
    }

    const serialized = serializeCircuit(
        circuit,
        program,
        inputState,
        outputState
    );

    doRun(res, serialized);
});

The server uses a binary file nand_checker.bin to check the circuit. And the input state is generated randomly with only 0x0000 or 0xffff values. The output state is the inverse of the input state.

So because the output state is the inverse of the input state, we can use the nand gate to flip the bits of the output state using the input state.

Payload to flip the bits of the output:

{
  "circuit": [
    {"input1": 5, "input2": 5, "output": 1},
    {"input1": 6, "input2": 6, "output": 2},
    {"input1": 7, "input2": 7, "output": 3},
    {"input1": 8, "input2": 8, "output": 4},
  ]
}

Sadly i can’t solve Pachinko Revisit :(

Pachinko Flag: picoCTF{REDACTED}
